This article describes how to add a new Google CloudSQL data source in Nexla.

For the version of this article pertaining to the previous Nexla UI, click here.

Contents:

1. Begin Adding a Google CloudSQL Data Source
2. Input Your Credential
3. Configure the Database Source
     3.1 Table Mode
     3.2 Query Mode
4. Schedule Data Source Scanning
5. Finish Creating the CloudSQL Data Source

1. Begin Adding a Google CloudSQL Data Source

1. Log into Nexla with your provided credentials.


   If you need credentials, contact [e-mail].

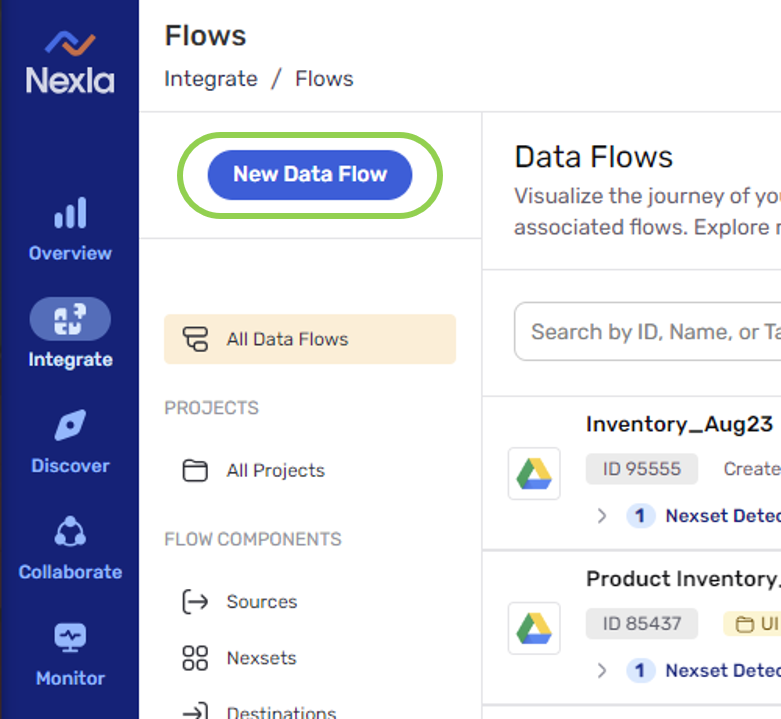

2. Navigate to the Integrate section by selecting from the platform menu on the left side of the screen.


3. Click at the top of the Integrate toolbar on the left.




4. Select the type of Google CloudSQL source to be added—, , or —and click in the top-right corner of the screen.



2. Input Your Credential

2. Select to open the Add a New Credential window and begin adding a new Google CloudSQL credential.


   To use a credential that has already been added, select that credential, click in the top-right corner of the screen, and skip to Section 3.

3. Enter a name for the credential in the Credential Name field.




4. Optional: Enter a description for the credential in the Credential Description field.


5. Enter your Hostname for your database. This is in the format company.domain.com. Do not include connection protocol.

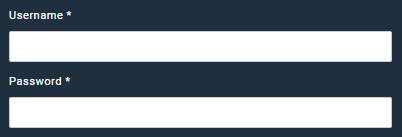

6. Enter your username and password for the database.

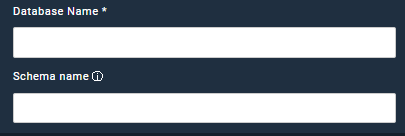

7. Enter your Database Name and Schema.
8. Click at the bottom of the Add New Credential window.

3. Configure the Database Source

In Nexla, the Google CloudSQL database source can be selected using either Table Mode or Query Mode.

Table Mode allows users to specify the database source through a simple selection method. This mode is equivalent to running a simple, optimized SELECT operation on any database table. To use this mode for configuration, see Section 3.1.

Query Mode allows users to perform a complex query to specify the database source. This mode provides a free-form query editor that can be used to perform any complex query written using the syntax and convention supported by the underlying database and/or warehouse. To use this mode for configuration, see Section 3.2.

3.1 Table Mode

1. To configure the CloudSQL source using Table Mode, ensure that the tab is selected.




2. Find the database location from which Nexla should read data. Expand files as necessary by clicking the icon next to each.

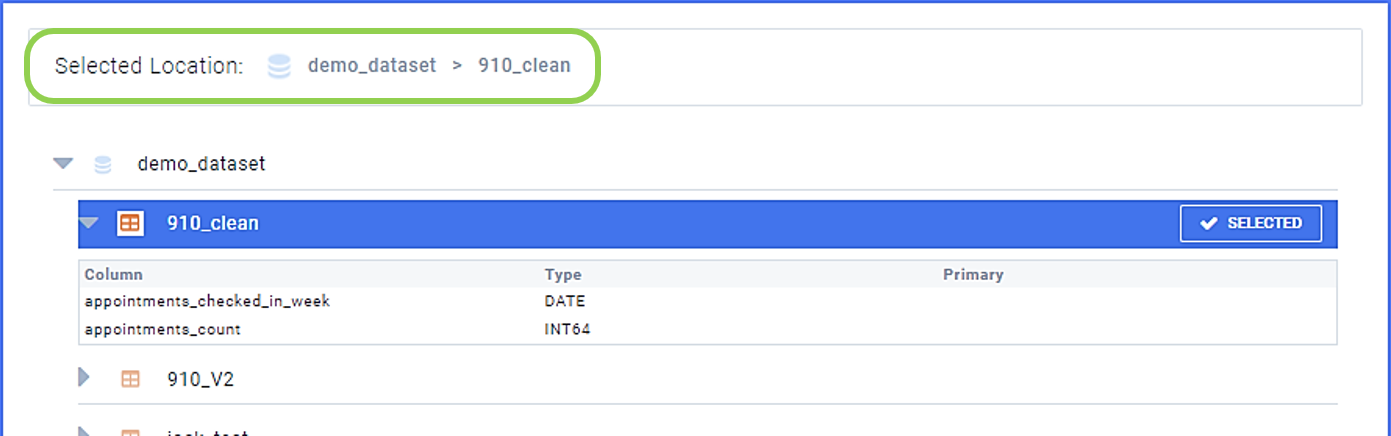

3. Select the location from which data should be read by hovering over it and clicking the button that appears to the right.


   The button should now display , and the path of the selected location will be shown at the top of the list.

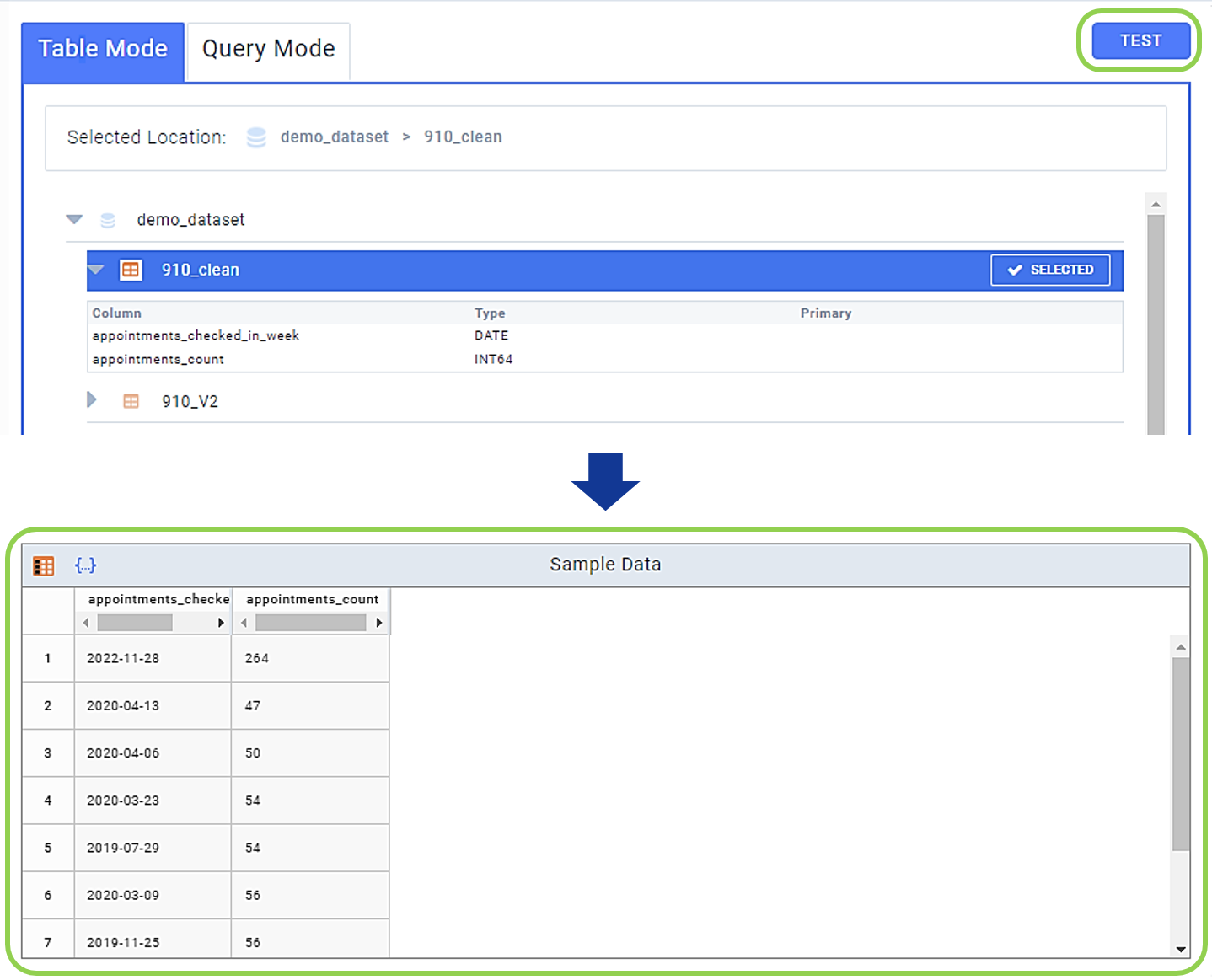

4. Optional: Click the button to the right of the mode-selection tabs to generate preview samples of data from the selected source at the bottom of the screen.





3.2 Query Mode

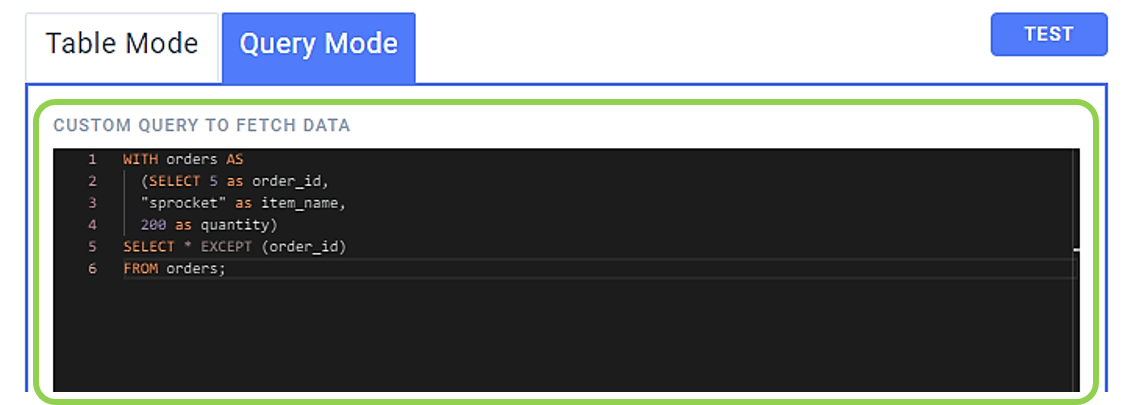

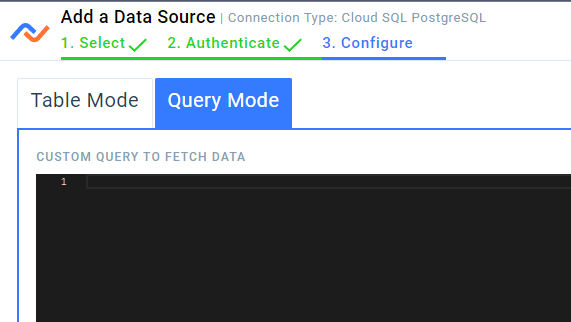

1. To configure the CloudSQL source using Query Mode, select the  tab.




2. Enter the query specifying the database location from which Nexla should read data in the Custom Query to Fetch Data field, adhering to the Google CloudSQL syntax and convention.



3. Optional: Click the button to the right of the mode-selection tabs to generate preview samples of the data selected according to the entered query at the bottom of the screen.





4. Schedule Data Source Scanning

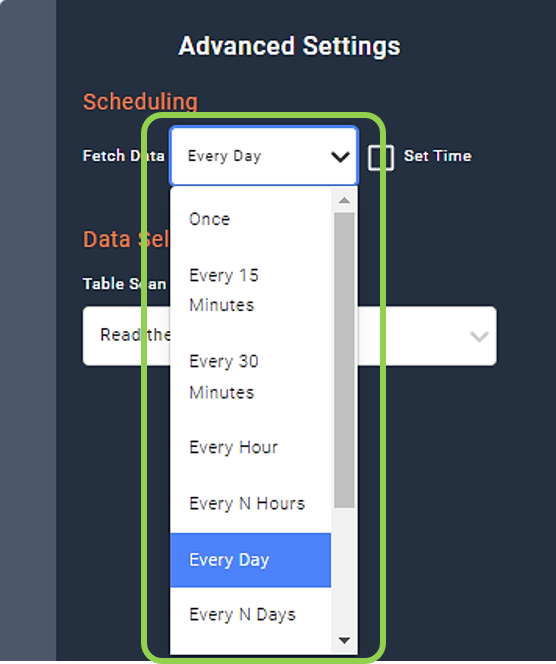

1. In the Advanced Settings menu on the right, use the Fetch Data pulldown menu to specify how often Nexla should fetch data from the source.


   The default setting configures Nexla to fetch any new data from the source once every day.

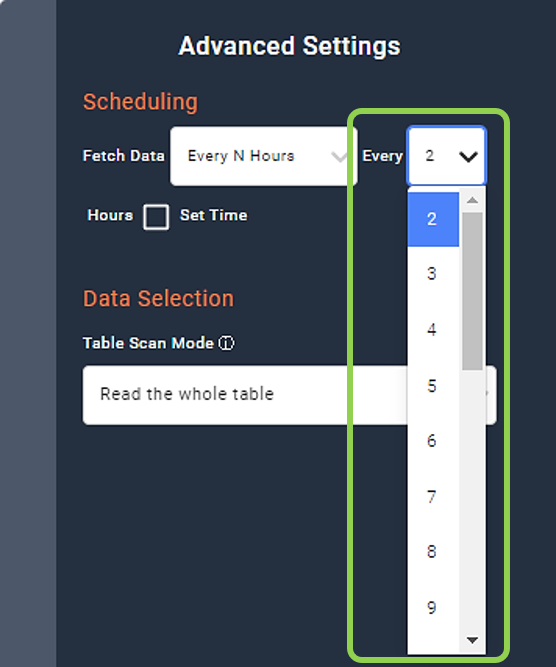

   • For options such as "Every N Hours" and "Every N Days", use the additional pulldown menu that appears when these options are selected to specify the value of N defining the fetching frequency.

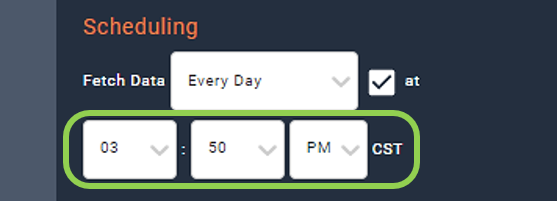

2. Optional: To set a specific time at which Nexla should fetch any new data from the source, check the box, and type or use the pulldown menus to enter the desired time.





5. Finish Creating the CloudSQL Data Source

1. Once all of the above steps have been completed, click in the upper right corner of the screen to save and create the new Google CloudSQL data source.

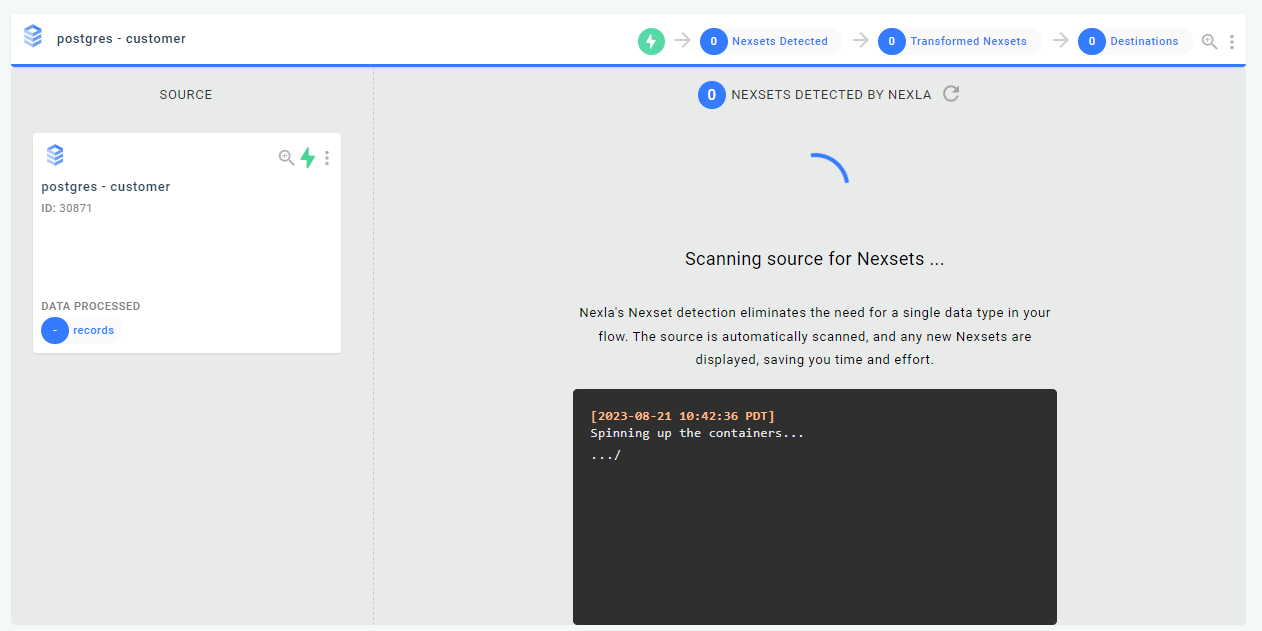

2. The confirmation page indicates that the Google CloudSQL database has been successfully created as a data source.

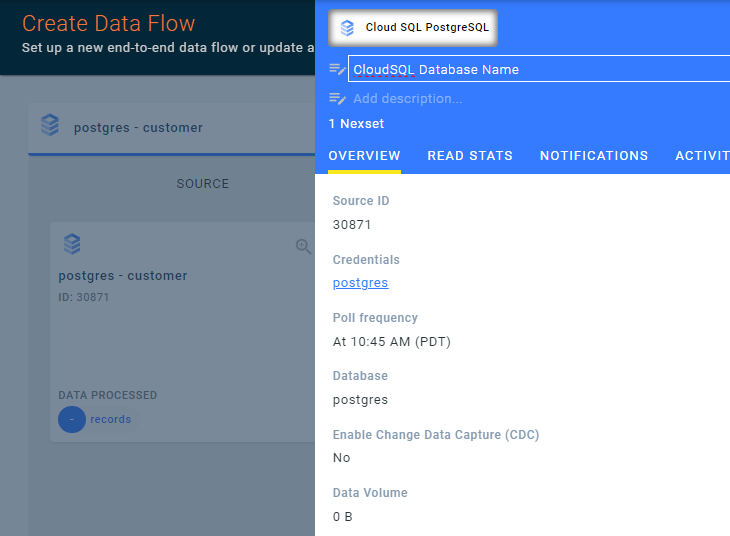

3. Optional: Edit the name of the newly added data source by clicking on the name field and entering the desired text.

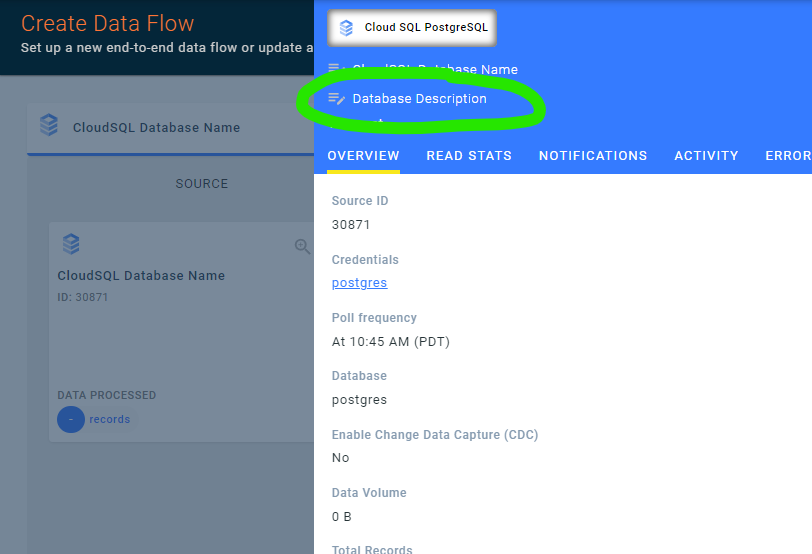

4. Optional: Add a description of the data source by clicking on the  field below the data source name and entering the desired text.




   • To return to My Data Sources, click in the upper right corner of the screen.


   • To view the newly created data source, click .


   • To view datasets detected from the newly added source, click .
